satnogs::comms::lib::exception Class Reference

Exception base class. More...

#include <exception.hpp>

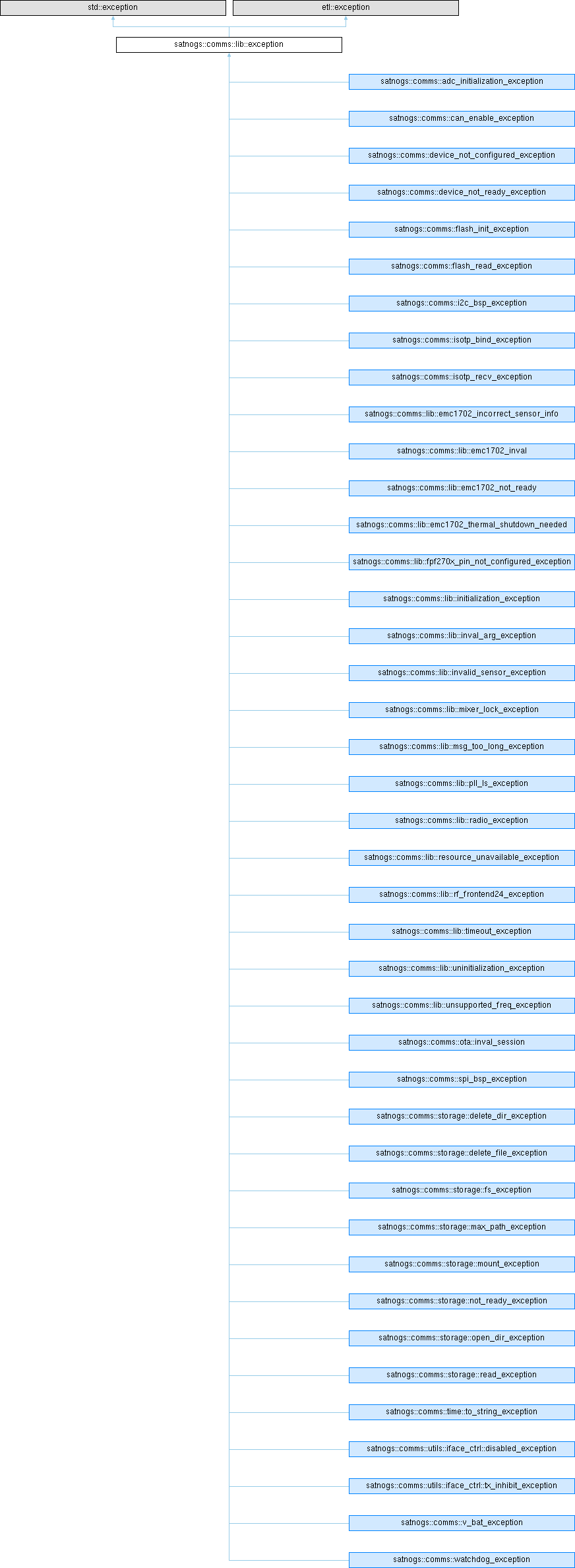

Inheritance diagram for satnogs::comms::lib::exception:

Classes
class	error_msg
	A class representing error messages in the SatNOGS-COMMS system. More...

Public Types
enum class	severity : uint8_t {   CATASTROPHIC = 0 , CRITICAL = 1 , MAJOR = 2 , MINOR = 3 ,   NONE = 4 }
	Severity levels of exceptions. More...

Public Member Functions
	exception (severity sev, const char *file, int lineno, const error_msg &err_msg)
	Constructor for the exception class.
void	to_string (etl::string_stream &stream) const
	Creates a string representation of the exception.
void	to_string (etl::istring &s) const
	Creates a string representation of the exception.
const char *	what () const noexcept override
int32_t	get_errno () const
severity	get_severity () const
	Get error severity level as defined in FDIR.

Detailed Description

Exception base class.

Each exception of SatNOGS-COMMS control library has a severity level that allows the firmware to take actions based on the severity. In addition the class provides the filename as well as the code line from which the exception was thrown. Also two different messages are supported. A verbose one that can be used during development and terse,, concise one that can be used for logging during in-flight.

Each exception is categorized by a severity level, enabling the firmware to take appropriate actions based on the severity of the issue. Key Features of the exceptions system:

• Severity Levels: Differentiates exceptions based on their impact on system operation.
• Filename and Line Number: Provides precise information about the origin of the exception.
• Verbose and Terse Messages: Offers detailed explanations for development purposes and concise logs for in-flight operations.

Warning

etl::exception does not derive from the std::exception. Therefore any attempts to handle globally an exception will fail. The lib::exception class however, derives from both etl::exception and std::exception.

Note

Exception handling is a task of the firmware/user

Definition at line 62 of file exception.hpp.

Member Enumeration Documentation

severity

enum class satnogs::comms::lib::exception::severity : uint8_t

strong

Severity levels of exceptions.

See also

FDIR analysis at https://cloud.libre.space/s/xzskpy8m3Nb54YL

Enumerator
CATASTROPHIC	Failure causing loss of mission.
CRITICAL	Failure causing mission degradation or significant damage.
MAJOR	Failure causing minor mission degradation.
MINOR	Failure having minimal impact.
NONE	No failure.

Definition at line 70 of file exception.hpp.

Constructor & Destructor Documentation

exception()

satnogs::comms::lib::exception::exception ( severity sev, const char * file, int lineno, const error_msg & err_msg )

inline

Constructor for the exception class.

Parameters

sev	The severity level of the error as defined in FDIR
file	The file where the exception was thrown.
lineno	The line number where the exception was thrown.
err_msg	The error message object containing the error details.

Definition at line 102 of file exception.hpp.

Member Function Documentation

get_errno()

int32_t satnogs::comms::lib::exception::get_errno ( ) const

inline

Definition at line 152 of file exception.hpp.

get_severity()

severity satnogs::comms::lib::exception::get_severity ( ) const

inline

Get error severity level as defined in FDIR.

The severity levels are defined in exception::severity enum class.

Returns

exception::severity the severity level of the error.

Definition at line 165 of file exception.hpp.

to_string() [1/2]

void satnogs::comms::lib::exception::to_string ( etl::istring & s ) const

inline

Creates a string representation of the exception.

Parameters

s	a reference to an ETL string where the exception message will be stored.

Note

This method appends the exception message to the provided ETL string

Definition at line 139 of file exception.hpp.

to_string() [2/2]

void satnogs::comms::lib::exception::to_string ( etl::string_stream & stream ) const

inline

Creates a string representation of the exception.

Parameters

stream

a reference to an ETL string stream where the exception message will be stored.

Note

This method appends the exception message to the provided ETL string stream.

Definition at line 122 of file exception.hpp.

what()

const char * satnogs::comms::lib::exception::what ( ) const

inlineoverridenoexcept

Definition at line 146 of file exception.hpp.

---

The documentation for this class was generated from the following file:

• libsatnogs-comms/include/satnogs-comms-lib/exception.hpp
